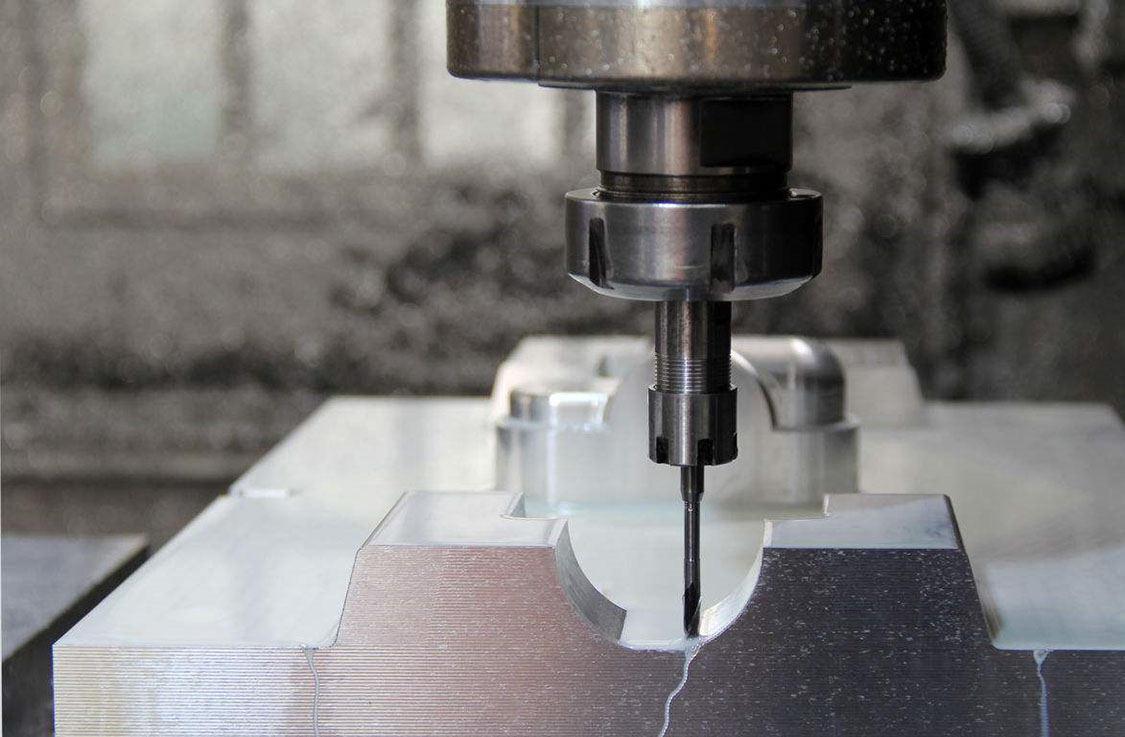

CNC is an abbreviation of "Computer Numerical Control", which is a manufacturing process in which pre-programmed computer software indicates the movement of factory tools and machinery. This process can be used to control a variety of complex machinery, from grinders and lathes to mills and routers. With CNC machining, you can complete 3D cutting tasks in a set of prompts.
CNC engineering contrasts with the limitations of manual control, thus replacing the limitations of manual control. In manual control, the on-site operator is required to prompt and guide the processing tool commands through joysticks, buttons and wheels and joysticks. To the onlookers, the CNC system may resemble a set of conventional computer components, but the software programs and consoles used in CNC machining distinguish it from all other forms of computing.
Things to Learn About CNC Machining
After activating the COMPUTER NUMERICAL CONTROL system, the required cuts are programmed into the software and assigned to the corresponding tools and machinery, which perform the specified dimensional tasks like a robot.
In CNC programming, a code generator in a digital system usually assumes that the mechanism is flawless, and despite the possibility of errors, this situation is even worse whenever the CNC machine is oriented to cut in multiple directions simultaneously. Big. The placement of tools in the COMPUTER NUMERICAL CONTROL is outlined by a series of inputs called part programs.
On a CNC machine, the program is entered through a punch card. In contrast, programs for CNC machines are entered into a computer via a keypad. CNC development remains in the computer's memory. The code itself is written and edited by the programmer. Therefore , the COMPUTER NUMERICAL CONTROL system provides greater computing power. Most importantly, the CNC system is by no means static, as new hints can be added to pre-existing applications through modified code.
In the CNC, the machine is operated by a numerical control system, in which a software program is usually specified to control the object. The language behind CNC machining is also called G code, and it is written to control various behaviors of the corresponding machine, such as speed, feed velocity, and coordination.
Basically, CNC machining can pre-program the speed and position of machine functions and run them through software in repetitive, predictable cycles, which require almost no manual operation. Because of these features, the process has been adopted in all corners of the manufacturing industry, and is particularly important in the metal and plastics production sector.
For beginners, 2D or 3D CAD drawings will be conceived and then converted into computer code for execution by CNC systems. After entering the program, the operator will perform a trial run to ensure that there are no errors in the coding.
Open / closed loop processing system
Position control is determined by an open-loop or closed-loop system. For the former, the signal runs in a single direction between the controller and the motor. In a closed-loop system, the controller can receive feedback so that error correction can be performed. Therefore , closed-loop systems may correct rate and position irregularities.
In CNC engineering, motion is usually oriented along the X and Y axes. In turn, the tool is positioned and guided by stepper or servo motors, which will replicate the precise motion determined by the G code. If the force and speed are minimal, the process can be run with open loop control. Intended for everything else, closed-loop control is necessary to ensure the acceleration, consistency, and accuracy required for industrial applications, such as metal products.
CNC machining is fully automatic
In today's CNC protocols, producing parts through pre-programmed software is mostly automated. Use computer aided design (CAD) software to put the dimensions of a given part in place, and then use computer- aided production (CAM) software to convert it to an actual finished product.
Any given workpiece may require various equipment tools and such as drills. To meet these needs, many machines today combine several different functions into a single unit. Alternatively, an installer might consist of multiple machines and a set of robots that move parts from one application to another, but all operations are controlled by the same program. Regardless of the setup, the COMPUTER NUMERICAL CONTROL process ensures consistent part production, and if not impossible, it is difficult to copy manually.
The earliest COMPUTER NUMERICAL CONTROL machine tools date back to the 1940s, when electric motors were first used to control the motion of existing tools. With the advancement of technology, the mechanism was enhanced with the enhancement of analog computers and eventually by digital computers, which led to the rise of CNC machining.
Most CNC arsenals today are fully electronic. Some of the more common processes operated by CNC include ultrasonic welding, drilling, and laser cutting. The most commonly used machines in CNC systems include:

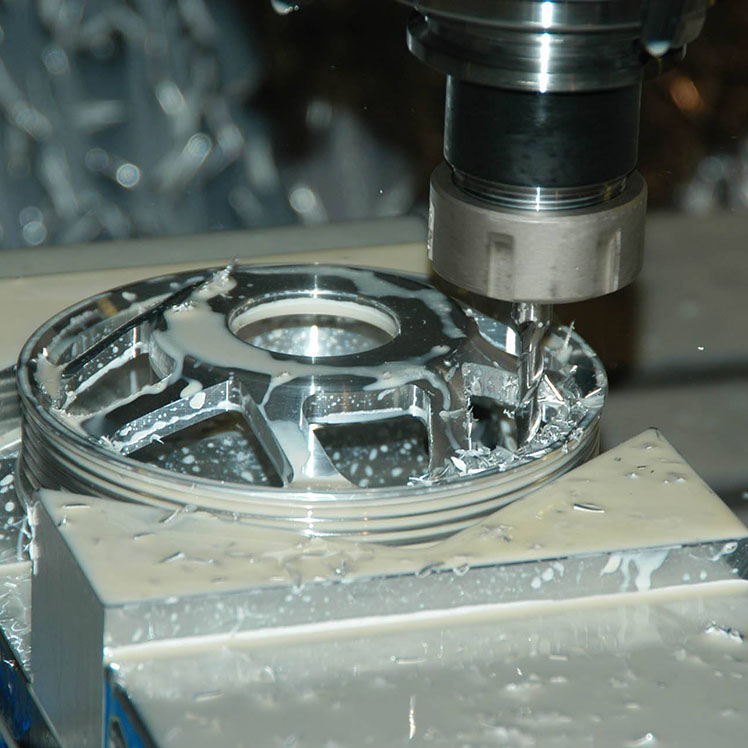

CNC Mills
The CNC mill machines can run on a program consisting of number and letter based prompts that guide workpieces at different distances. Programming for the work can be based on G code or some unique languages developed by the developing team. The basic milling cutter consists of a three axis program (X, Y, and Z), although most newer milling cutters can easily accommodate three additional axes.
A few of the more common procedures operated simply by CNC consist of ultrasonic welded, drilling, and laser trimming.
Lathes
In the lathe machines, use indexable cutters to cut parts in a circular direction. With the help of CNC technology, the cutting method used by the lathe can achieve high precision and high speed. CNC lathes are used to produce complex designs, which are not possible with manually operated machines. Overall, CNC milling and turning machines have similar control functions. As with the former, the lathe can be managed by a G code or an unique proprietary code. However , most CNC lathes consist of two axes-X and Z.
Plasma Cutters
Within a plasma cutter machines, the material is definitely cut with a plasma torch. This method was first applied to metallic materials, but it can also be applied to other surfaces. In order to generate the speed and heat needed to cut metal, a plasma is created by a combination of compressed air gas and an arc.
Electric Discharge Machines
Electrical discharge machining (EDM) (also known as die sinking and spark machining) is a process where a workpiece can be molded into a special shape by electric spark. With EDM, a current discharge occurs between the two electrodes, removing the part of a given workpiece.
When the space between the electrodes becomes smaller, the electric field becomes stronger than the dielectric and therefore stronger. This allows current to pass between the two electrodes. Consequently , a part of the workpiece is removed by each electrode. The subtypes of EDM contain:
Wire EDM, which usually uses ignite erosion to remove parts from conductive materials.
Sinker EDM, which immerses the electrode and the workpiece in an insulating liquid to form the workpiece.
In a process called rinsing, debris coming from each completed workpiece is certainly carried away by the liquid dielectric. Once the current between the two electrodes stops, the di-electric appears and the dielectric is designed to eliminate any other charges.
Water Jet Cutters
In CNC machining, waterjets is a tool for slicing hard components such as granite and metal under the action of high pressure water. In some cases, water is mixed with sand or other highly abrasive substances. Factory machine parts are usually formed through this process.
Waterjets are used as coolers for supplies that cannot withstand the high heat techniques of other CNC devices. As a result, waterjets are used in a range of fields, such as the aerospace and mining industries, and in the procedure, they are powerful for engraving and cutting, among other functions. Water jet cutters are also used in applications that require very complex cutting of materials, because the lack of heat prevents any change in the inherent properties of the material that might result from metal-to-metal reducing.
